iWBMSh STX
디에스건설은 실시간 시공모니터링 및 시공검측을 위해서 Norbit사의 iWBMSh STX모델을 운영하고 있습니다.

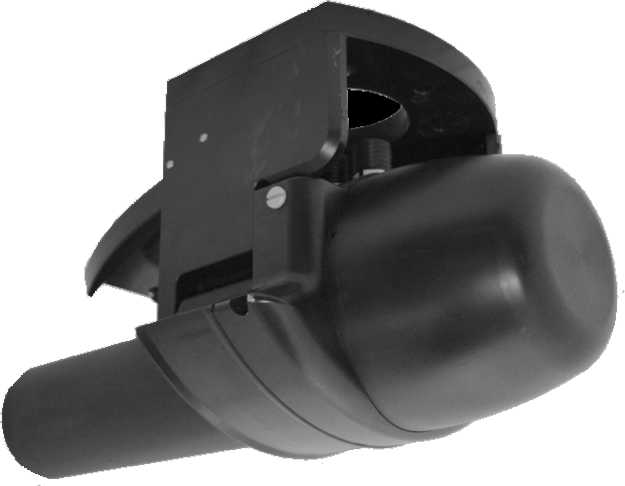

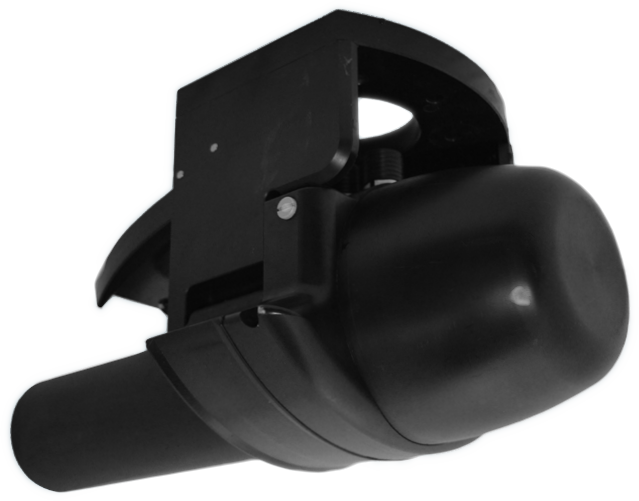

NORBIT - iWBMSh STX
Go-anywhere, go-anytime ultra-high 3D resolution curved-array bathymetric mapping solution featuring industry leading GNSS/INS positioning system from NORBIT.
- Features
- Multibeam Sonar with Integrated Inertial Navigation System & Integrated NTRIP Client
- 80kHz Bandwidth
- Roll & Pitch Stabilisation
- Backscatter outputs (Intensity, Sidescan, Sidescan Snippets, Snippets, Water Column)
- Multidetect
- Simple Ethernet Interface
- Integrated Sound Velocity Probe
- GPS Antennas included
- FM & CW Processing
- Flexible Power Option
- Exceeds IHO Special Order, CHS Exclusive Order & USACE New Work

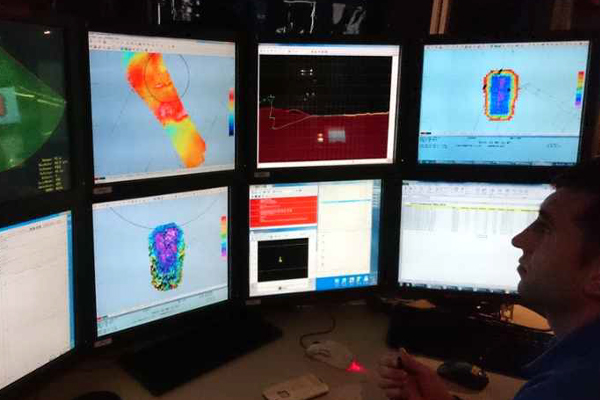

iWBMSh STX 모델 운영사진
| SWATH COVERAGE | 5-210º FLEXIBLE SECTOR (SHALLOW WATER IHO SPECIAL ORDER >155O) |
|---|---|
| DEPTH RESOLUTION | ＜6mm W. 80kHz ACOUSTIC BANDWIDTH |
| NUMBER OF BEAMS | 256, 512 (HDS 1024) EA & ED |
| OPERATING FREQUENCY | NOMINAL FREQUENCY 400kHz (FREQUENCY AGILITY 200-700kHz) |
| DEPTH RANGE | 0.1m-275m (160m TYPICAL) |
| PING RATE | UP TO 60Hz, ADAPTIVE |
| RESOLUTION (ACROSS X ALONG) | STANDARD: 0.9O X 0.9O @400kHz AND 0.5O X 0.5O @700kHz |
| POSITION |
HOR: ±(8mm +1ppm X DISTANCE FROM RTK STATION) VER: ±(15mm +1ppm X DISTANCE FROM RTK STATION) (ASSUMES 1m GNSS SEPARATION) |
| HEADING ACCURACY | 0.02º (RTK) WITH 2m ANTENNA SEPARATION |
| PITCH/ROLL ACCURACY | 0.01º INDEPENDENT OF ANTENNA SEPARATION |
| HEAVE ACCURACY | 2 cm OR 2% (TRUEHEAVETM), 5 cm OR 5% (REAL TIME) |
| WEIGHT | 10.1kg (AIR) LESS THAN 5.1kg (WATER) |
| INTERFACE | ETHERNET |
| CABLE LENGTH | STD CABLE LENGTH 8m, OPT: 2m, 25m AND 50m |
| POWER CONSUMPTION | 70W (10-28VDC, 110-240VAC) |
| OPERATING TEMP. | -4°C to +40°C (TOPSIDE -20°C to +55°C) |
| STORAGE TEMP. | -20°C TO +60°C |
| ENVIRONMENTAL | TOPSIDE: IP67: DUST TIGHT, PROTECTED AGAINST THE EFFECT OF IMMERSION UP TO 1m/WET-END (SONAR): 100m |
