디에스건설은 Coda Octopus사의 3D Echo Scope 1대, 최신모델인 Echosope 4G 모델을 보유함으로써 해저시공의 정밀성, 안정성을 향상시키고 아울러 양질의 시공인력 보유를 통해 고객사의 시공품질만족을 이끌어내고 있습니다.

Coda Octopus

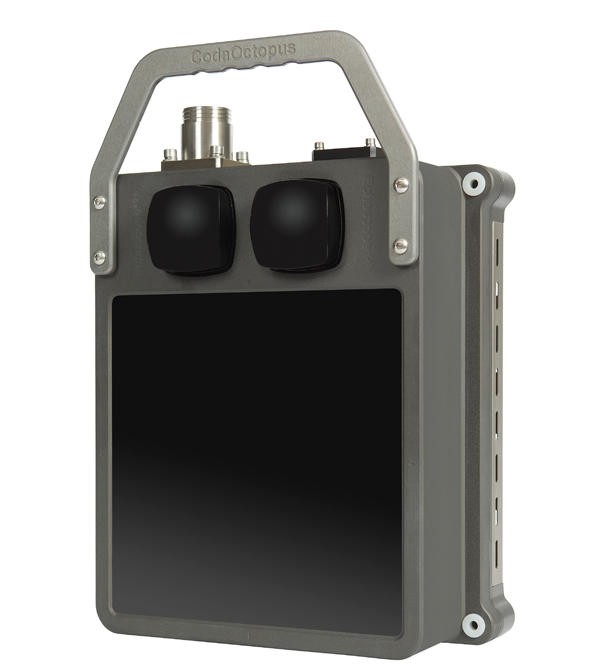

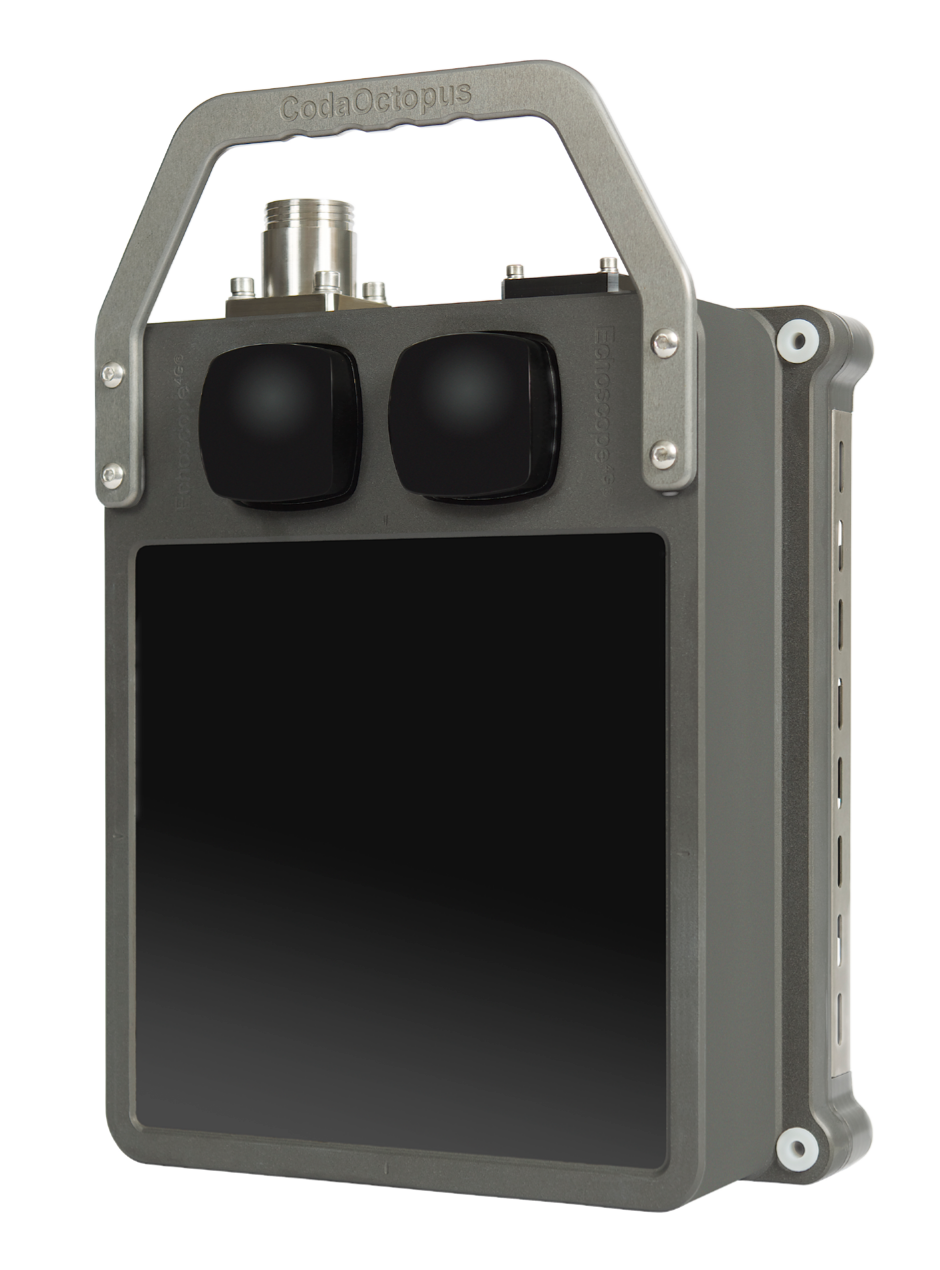

Fourth Generation of Echoscope® Sonars

Lighter/Smaller/Less Power Requirements

More Versatile Deployments Possible

Benefits

Improved situational awareness

Highest definition of multibeam data output in the world

Real time decision making

Increased productivity

Maintain subsea operations in zero visibility

Enhanced safety

Expert 24x7 Technical Support

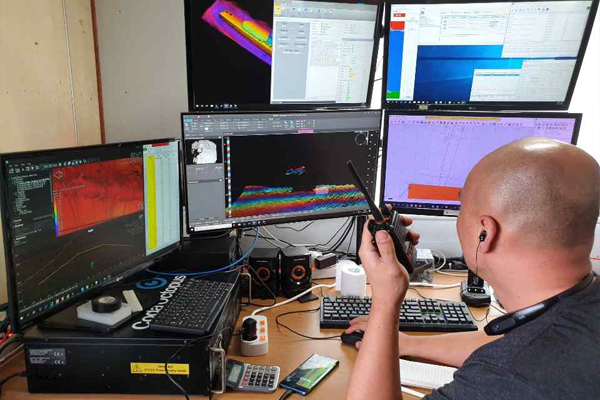

Echo Scope 운영사진

250m-4000m Depth Rating

Performance (by Model)	Dual Frequency	Triple Frequency
Frequency	375 and 630kHz software switchable	240,375 and 630kHz software selectable
Number of beams	128 x 128 (16,384 total)	128 x 128 (16,384 total)
Maximum range*	120m (394ft) at 375kHz 80m (262ft) at 630kHz	From 150m (492ft) at 240kHz 120m (394ft) at 375kHz 80m (262ft) at 630kHz
Minimum range*	0.5m (1.64ft)	0.5m (1.64ft)
Range resolution	3cm (1.2in)*	3cm (1.2in)*
Update rate (ping rate)	Up to 20 Hz software selectable	Up to 20 Hz software selectable
Angular coverage	50ºx50º, 24ºx24º	90ºx44º, 50ºx50º, 24ºx24º
Beam spacing	375kHz: 0.39ºx0.39º 630kHz: 0.19ºx0.19º	240kHz: 0.70ºx0.34º 375kHz: 0.39ºx0.39º 630kHz: 0.19ºx0.19º

*The actual working range will depend on the target’s size, reflectivity, and the level of detail required for the application
